Blow Molding Label IML In Mould Labeling Systems For PP and PE Resin Containers

Short Description:

Product Description In-mold labeling refer to pre-printed paper, synthetic or thin-coated labels with a special hot-melt adhesive on the back, which is placed inside the model before plastic blowing, injection molding or thermoforming to create a plastic bottle or basin. The label and the container form a whole, the label and the bottle are basically on the same plane. And the edge of the label is invisible, as if the graphic is printed on the surface of the bottle. The use of in-mold labels ...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    In-mold labeling refer to pre-printed paper, synthetic or thin-coated labels with a special hot-melt adhesive on the back, which is placed inside the model before plastic blowing, injection molding or thermoforming to create a plastic bottle or basin. The label and the container form a whole, the label and the bottle are basically on the same plane. And the edge of the label is invisible, as if the graphic is printed on the surface of the bottle. The use of in-mold labels eliminates the need for labeling machines. Therefore, in-mold labeling is a new technology with great potential.

    Product Features

    • Excellent printing performance, suitable for a variety of printing methods.
    • Fast ink-drying and bright colors.
    • Orange-peel effect and smooth lines after finished.
    • Low static, easy for die-cutting.
    • No mutual adsorption between labels to ensuring smooth labeling of manipulator.
    • Suitable for labeling of PP and PE resin containers.

    Datasheet

    Item Value
    Model No. CYB-J 105
    Out Performance One side matt, one side grain
    Thickness (μm) 105
    Density (g/cm³) 0.76
    Weight (g/m²) 79.8
    Gloss (%) Glossy Side 19
    Matt Side 29
    Whiteness (%) 90
    Opacity (%) 95
    Surface Resistance (Ω) Glossy Side 1*1011
    Matt Side 1*1012
    Tensile Strength (Mpa) MD 70
    TD 149

    Application

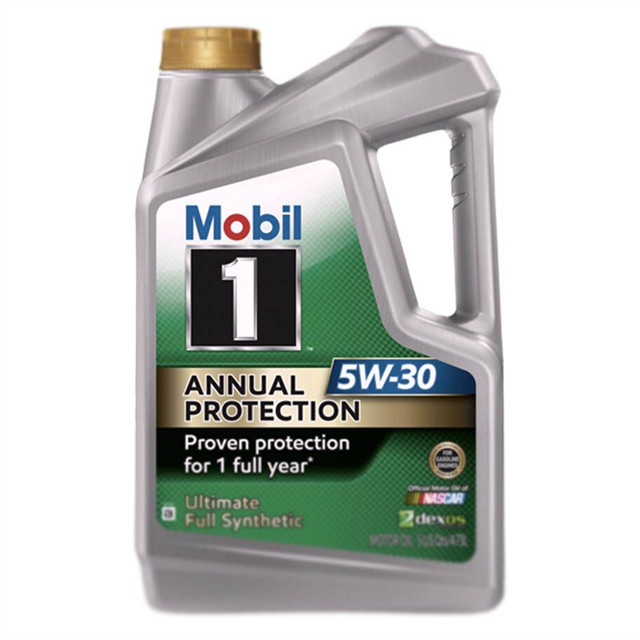

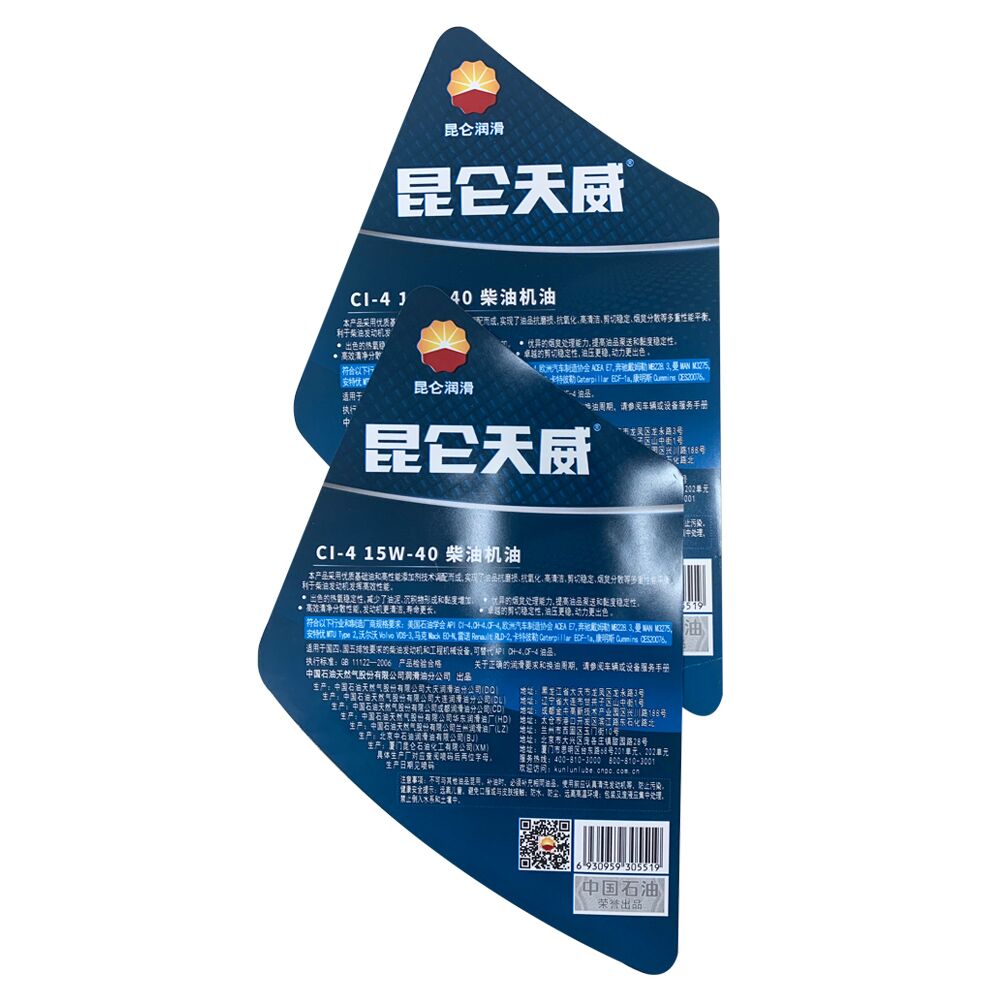

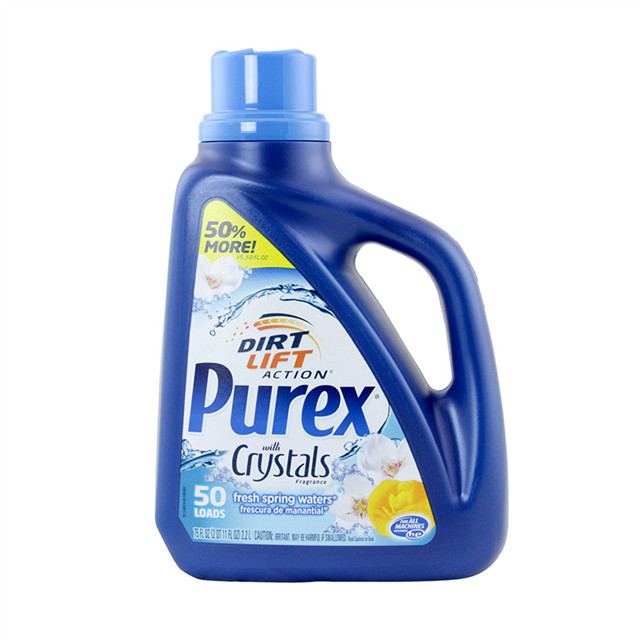

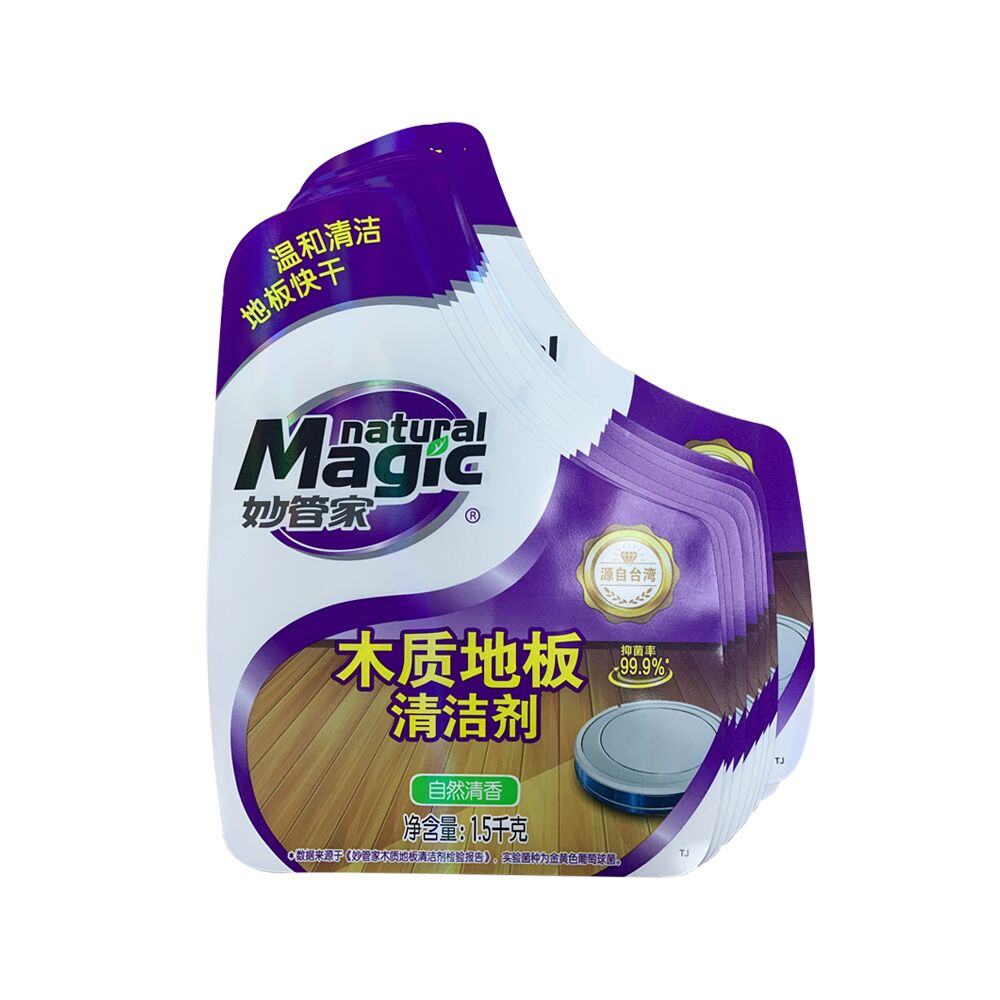

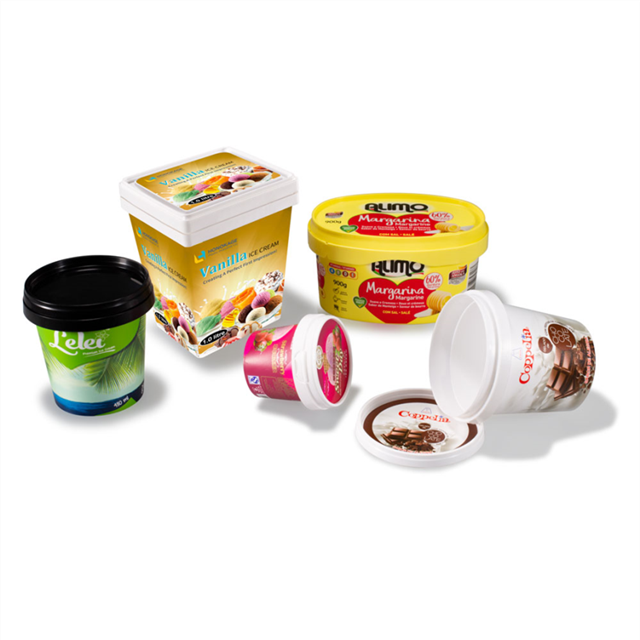

    Cosmetics industry, pharmaceutical industry, cleaning supplies, oil bottle stickers, etc.
