3M 851 Circuit Plating Tape PET Green Tape for Circuit Printing Board

Short Description:

Product Description 3M 851 circuit plating tape  is a green PET film tape with silicone or rubber pressure sensitive adhesive, it uses for printing circuit board masking during electroplating. The strong adhesion and high temperature resistance is suitable for plating photo splicing, shipping and packing plasma spray. Structures Silicone/rubber adhesive   Polyester film Features Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers. Special...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    3M 851 circuit plating tape  is a green PET film tape with silicone or rubber pressure sensitive adhesive, it uses for printing circuit board masking during electroplating. The strong adhesion and high temperature resistance is suitable for plating photo splicing, shipping and packing plasma spray.

    Structures

    Silicone/rubber adhesive
     Polyester film

    Features

    • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers.
    • Specially designed adhesive that usually performs better when there is no oven to heat tape and cardboard.
    • Polyester backing reduces the stretching and recycling of tape associated with uneven stop lines.

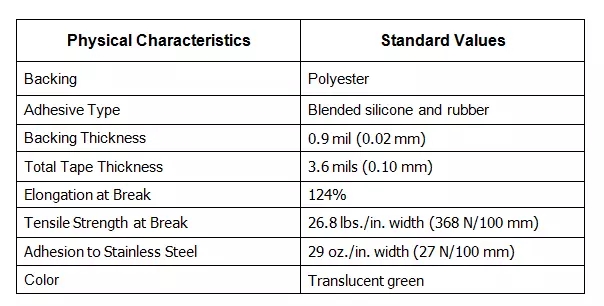

    Datasheet

    3M 851 DATA SHEET

    Applications

    • For printing circuit board .
    • For electric assembly general purpose masking.
    • Low-stretch polyester film can be applied by machine or by hand.
