Anti-oxidation Embossed Tin-Plated Copper Foil Tape for EMI Shielding 3M 1345 Replacement

Short Description:

Product Description 3M 1345 Embossed Tin-Plated Copper Foil Tape is made from an embossed 1-ounce eadsoft tin-plated copper foil backing with an aggressive pressure-sensitive acrylic adhesive.  The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate. Features Improves resistance to oxidation and discoloration. Embossed deadsoft 1-ounce tin-plated copper foil backing C...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

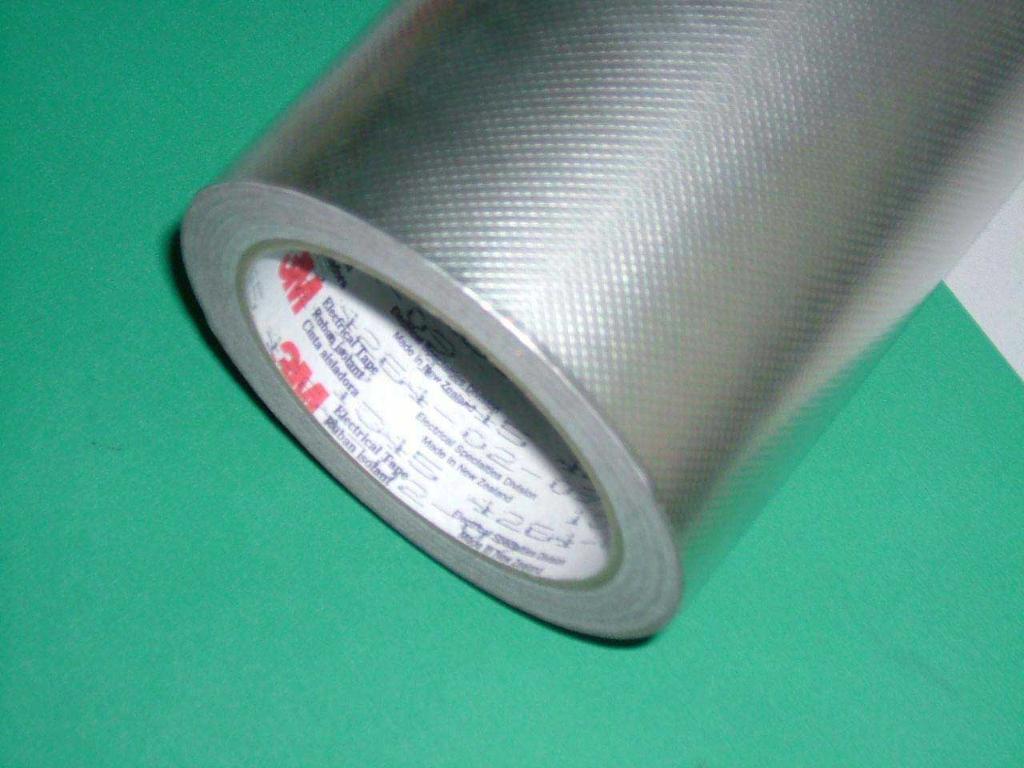

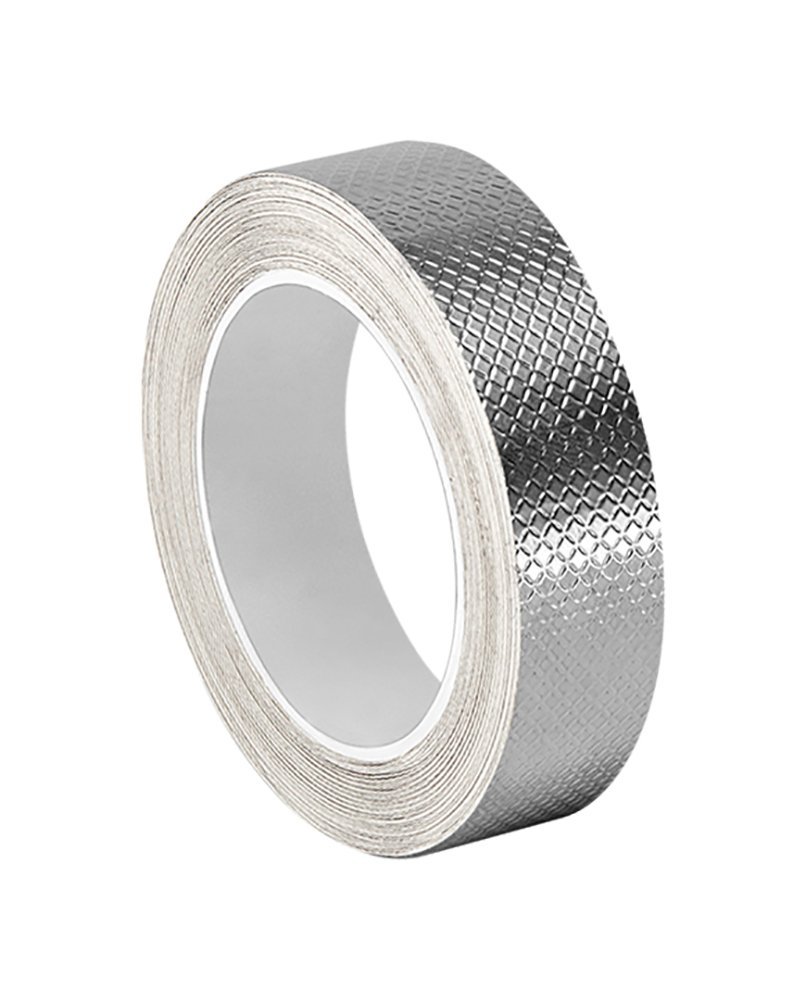

    3M 1345 Embossed Tin-Plated Copper Foil Tape is made from an embossed 1-ounce eadsoft tin-plated copper foil backing with an aggressive pressure-sensitive acrylic adhesive.  The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate.

    Features

    • Improves resistance to oxidation and discoloration.
    • Embossed deadsoft 1-ounce tin-plated copper foil backing
    • Conductivity “through the adhesive”
    • Supplied on a removable liner for easy handling and diecutting

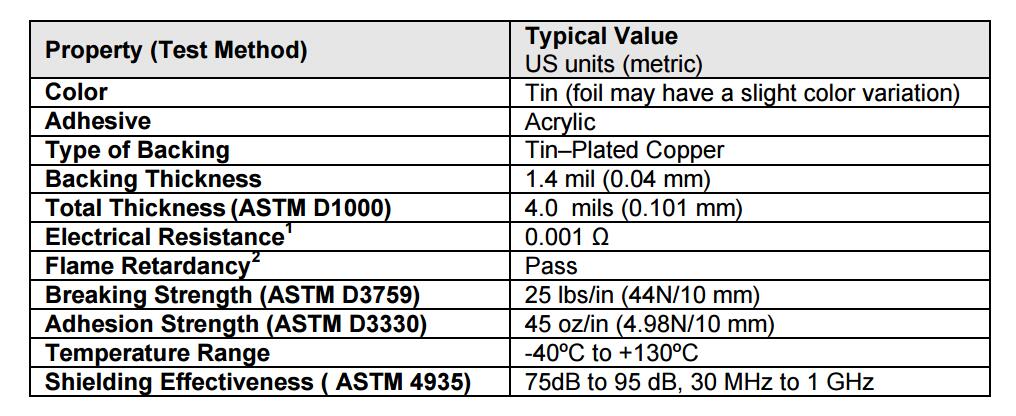

    Datasheet

    3M 1345 Embossed Tin-Plated Copper Datasheet

    Application

    1. 3M 1345 Embossed Tin-Plated Copper Foil Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing.
    2. Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc.
    3. The tin plating on the copper foil backing facilitates soldering and improves resistance to oxidation and discoloration.
