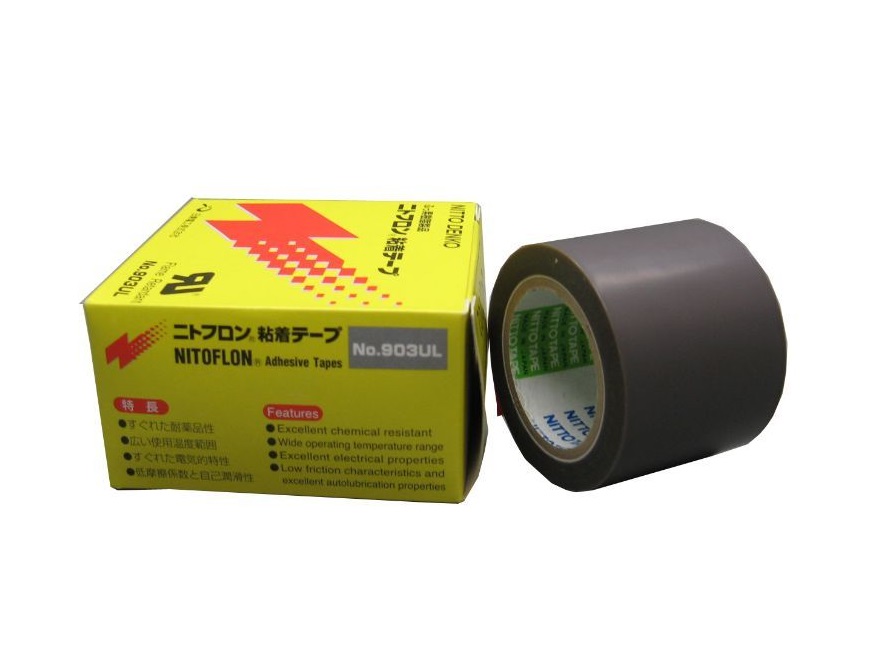

Nitto denko 903UL High Temperature Teflon PTFE Film Tape For Electrical Insulation

Short Description:

Product Description Nitto 903UL Teflon film tape is treated PTFE film-base and coated with silicone adhesive with excellent heat-resistance. Along with great electrical characteristics, the tape has a number of excellent features such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness. Structures Silicon Adhesive PTFE Film Features Excellent  flame resistance. Excellent dielectric properties. Ageing-resistance, corrosion resistance. High lubricatio...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    Nitto 903UL Teflon film tape is treated PTFE film-base and coated with silicone adhesive with excellent heat-resistance. Along with great electrical characteristics, the tape has a number of excellent features such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.

    Structures

    Silicon Adhesive
    PTFE Film

    Features

    • Excellent  flame resistance.
    • Excellent dielectric properties.
    • Ageing-resistance, corrosion resistance.
    • High lubrication and best chemical corrosion resistance.

    Data sheet

    Product

    Thickness

    (mm)

    Strength of Extension

    (N/19 mm)



    Adhesive

    Strength

    (N/19 mm)

    Rewinding Force

    (N/19 mm)

    Breakdown

    Voltage

    (kV)

    Temperature Range

    (°C)

    No.903UL

    0.08

    55

    5.6

    4.4

    8

    -60 – 200

    0.13

    93

    7.1

    5.8

    11

    0.18

    160

    7.4

    7.1

    14

    0.23

    210

    8.7

    8.9

    15

    Applications

    Nitto 903UL Teflon film tape is widely used in heat-resistant masking,connect insulation coating,dielectric substrate seal and lubrication materials, electrical insulating parts, capacitor dielectric, conductor insulation, electrical instrumentation insulation, etc.
