3M F9460PC VHB Adhesive Transfer Tape Bonding flexible printed circuits (FPC) to aluminum stiffener or heat sinks.

Short Description:

Product Description 3M F9460PC VHB adhesive transfer tape is a thin, double sided tape capable of conforming to a wide variety of applications. Designed with 2.0 mil 3m high performance acrylic adhesive 100MP, our VHB adhesive transfer tape F9460PC establishes exceptional holding power and long-lasting adhesion for fast, strong results. 3M F9460PC VHB adhesive transfer tape  is one of 3M double side adhesive tape with no carrier, it belongs to VHB adhesive (pressure-sensitive adhesive). The t...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    3M F9460PC VHB adhesive transfer tape is a thin, double sided tape capable of conforming to a wide variety of applications. Designed with 2.0 mil 3m high performance acrylic adhesive 100MP, our VHB adhesive transfer tape F9460PC establishes exceptional holding power and long-lasting adhesion for fast, strong results.

    3M F9460PC VHB adhesive transfer tape  is one of 3M double side adhesive tape with no carrier, it belongs to VHB adhesive (pressure-sensitive adhesive). The thickness is 0.05mm and the master volume is 1524mm*55m* 0.05mm and 1219mm*55m. The thickness of the tape is thinner, but it still has strong stickiness, and it has strong physical stability and chemical stability. It can be used to isolate damp gas and seal, as well as anti – solvent, anti – ultraviolet radiation, anti – temperature change and so on.

    Size

    1524MM*55M*0.05MM or 1219MM*55M*0.05MM
    Custom sizes are available upon request.

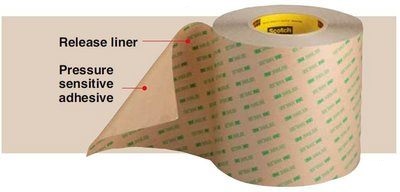

    Structures

    3M F9460PC VHB Adhesive Transfer Tape stucture

    Features

    • High performance acrylic adhesive.
    • Short term temperature tolerance of up to 500 °F (260 °C).
    • Operating temperature tolerance of up to 300°F (149°C).
    • Conforms to a variety of indoor and outdoor applications.
    • Kraft paper liner printed with 3M VHB branding.
    • Durable adhesive is chemical, UV and solvent resistant.
    • Ease of application increases productivity.

    Datasheet

    Project

    Test method

    Test value

    Unit

    Thermal expansivity



    770*10^-6

    mm/mm/℃

    Thermal conductivity

    ASTM C-177

    0.0016

    W/CM℃

    Insulation resistance

    mil-l-46058C

    1*10^10

    Ω

    Dielectric strength

    ASTM D149-97

    1200

    v/mil

    Insulation resistance

    ASTM -1000

    1*10^6

    MΩ/ in.²

    Density



    0.98

    g/ cm³

    Stainless steel peel strength.

    ASTM D3330

    120

    N/10cm

    Solvent resistance



    good



    UV-Stability



    good



    Temperature resistance

    Long term

    149



    Short term

    260

    Applications

    • Replacing rivets, spot welds, liquid adhesives and other permanent fasteners.
    • Bonding decorative metal trim.
    • Bonding flexible printed circuits (FPC) to aluminum stiffener or heat sinks.
    • Panel to frame bonding.
