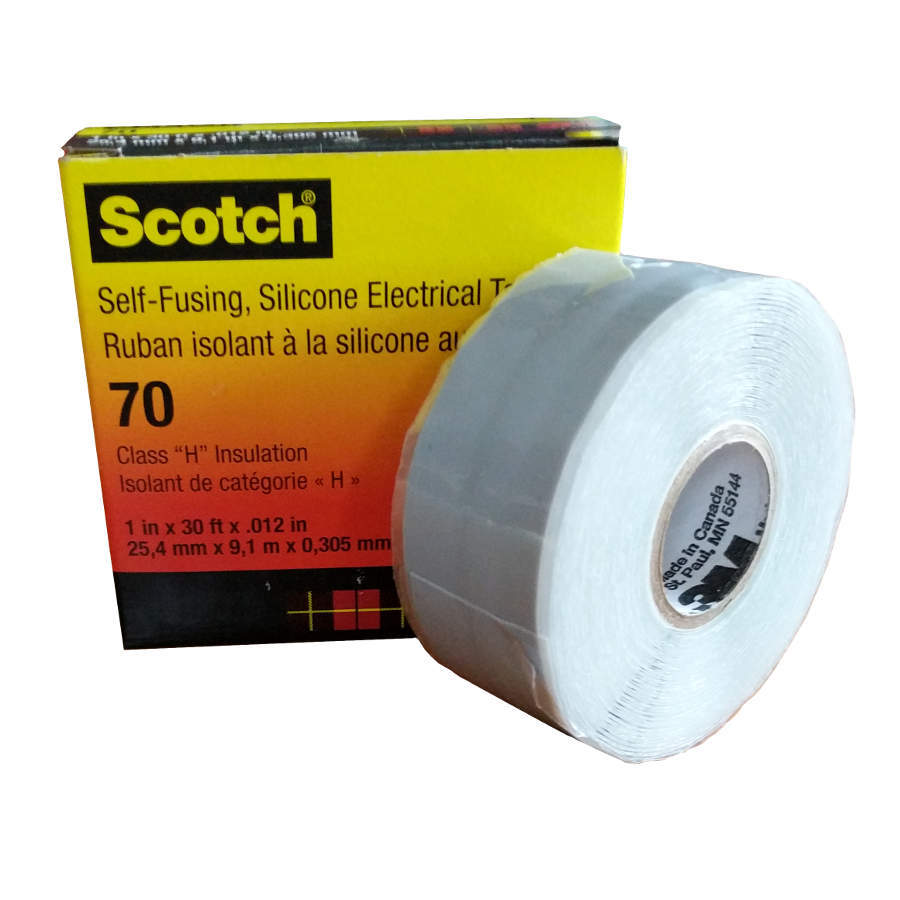

3M70 Self-Fusing Silicone Rubber Electrical Tape for Protection of Terminating High-voltage Cables

Short Description:

Product Description Scotch™ Brand 3M 70 Self-Fusing Silicone Rubber Electrical Tape is a high temperature arc-and track-resistant tape composed of self-fusing, inorganic silicone rubber and easy-tear and easy-strip liner.Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 can be used as base tape layer to cleanly reenter connections. Scotch® Tape 70HDT High-Temperature Tape has a self-fusing, inorganic, silicone adhesive that offers optimized adherence. It is used as an overwrap for protec...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    Scotch™ Brand 3M 70 Self-Fusing Silicone Rubber Electrical Tape is a high temperature arc-and track-resistant tape composed of self-fusing, inorganic silicone rubber and easy-tear and easy-strip liner.Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 can be used as base tape layer to cleanly reenter connections.

    Scotch® Tape 70HDT High-Temperature Tape has a self-fusing, inorganic, silicone adhesive that offers optimized adherence. It is used as an overwrap for protecting high-voltage cables from tracking. This highly conformable tape has outstanding weathering characteristics and provides excellent resistance to ozone and arcs. This tape has a triangular, tapered edge profile and a blue guideline that makes half-lapping applications easier. RoHS 2011/65/EU Compliant.

    Features

    • Excellent track resistance.
    • Excellent arc resistance.
    • ™ Excellent ozone resistance.
    • High dielectric strength.
    • ™ Class “H” material (180°C continuous operation)
    • Workable in extremely low temperatures.
    • ™Excellent conformability.
    • Excellent instantaneous fusion; does not need to be held down.
    • Matches Sky Blue Grey Munsell 5BG7.0/0.4.
    • Excellent weathering characteristics.

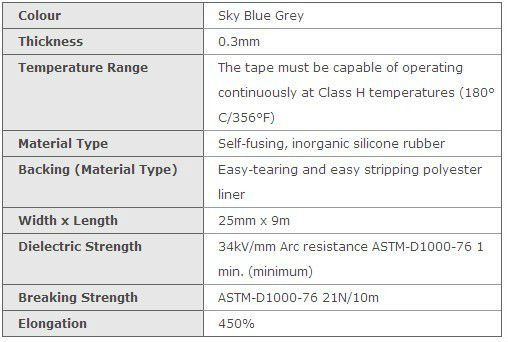

    Datasheet

    3M70 Self-Fusing Silicone rubber tape DATASHEET

    Applications

    ™ 1) As an overwrap for protection of terminating high-voltage cables against arcing and tracking. High-voltage cables with these insulations should be overwrapped:

    •  Butyl rubber
    • Oil-base rubber
    • Ethylene propylene rubber
    • PVC
    • Low and high-density polyethylene crosslinked.

    2)As primary insulation where Class “H”(180°C/356°F) temperatures are encountered ie. silicone rubber cables.

    3M70 Self-Fusing Silicone rubber tape application
