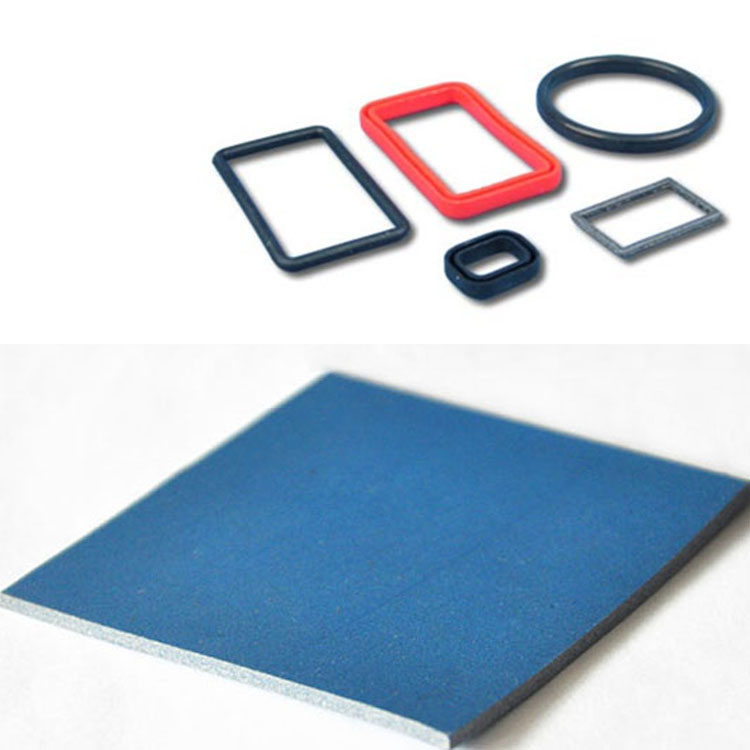

Die Cutting Thermally Conductive Silicone Sponge Sheet with UL Recognition

Short Description:

Product Description Thermally conductive silicone sponge sheet is a thermally conductive closed cell silicone sponge rubber. This material offers thermal conductivity along with electrical isolation. It possesses excellent conformability to irregular surfaces and a clean release from most materials. It comes in multiple thicknesses to fill various air gap heights and its cellular structure provides extremely compliant gap filler. This material is recommended to fill the needs of an unsupporte...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    Thermally conductive silicone sponge sheet is a thermally conductive closed cell silicone sponge rubber. This material offers thermal conductivity along with electrical isolation. It possesses excellent conformability to irregular surfaces and a clean release from most materials. It comes in multiple thicknesses to fill various air gap heights and its cellular structure provides extremely compliant gap filler. This material is recommended to fill the needs of an unsupported thermal transfer material in applications requiring clean release, enhanced thermal performance by filling air gaps, electrical isolation and vibration cushioning.

    Features

    • Chemical resistance.
    • Thermal conductivity
    • High temperature performance.
    • Electrical resistance.
    • Long-term resiliency.

    Datasheet

    Property

    Test Method

    Typical Values

    Color

    Visual

    Light Green

    Thickness, nominal (in.)

    ASTM D374

    1/32, 1/16, 3/32, 1/8, 3/16, 1/4

    Thermal Conductivity (W/mk)

    ASTM E1530

    @ contact compression, <1 psi = 0.30

    @10% compression, 5 psi = 0.40

    @25% compression, 12 psi = 0.45

    @50% compression, 34 psi = .65

    Thermal Impedance (ºC in.²/W)

    ASTM E1530

    @ contact compression, <1 psi = 6.0

    @10% compression, 5 psi = 4.5

    @25% compression, 12 psi = 2.5

    @50% compression, 34 psi = 1.0

    Break Strength (psi)

    ASTM D412

    120

    Elongation (%)

    ASTM D412

    150

    Hardness (Shore A)

    ASTM D2240

    13

    Dielectric Strength (volts/mil)

    ASTM D149

    100

    Compression Deflection (@25%, psi)

    ASTM D1056

    20

    Compression set

    ASTM D1056

    15

    Density (lbs.in.³)

    ASTM D297

    0.040

    Operating Temp (ºF)



    -80 to 400

    UL Listing Recognition

    UL 94

    V-1 down to 1/8” thick

    Applications

    Thermally conductive silicone sponge sheet is a superior choice for gasket and cushioning applications requiring critical thermal transfer and sealing. It can also be used for gaskets, seals, press pads, computers, telecommunication, automotive electronics, military, medical, heat pipe assemblies, CD ROM cooling, thermal insulating, thermal shielding, heat transfer, decal transfer, print presses, and vibration mounts.
