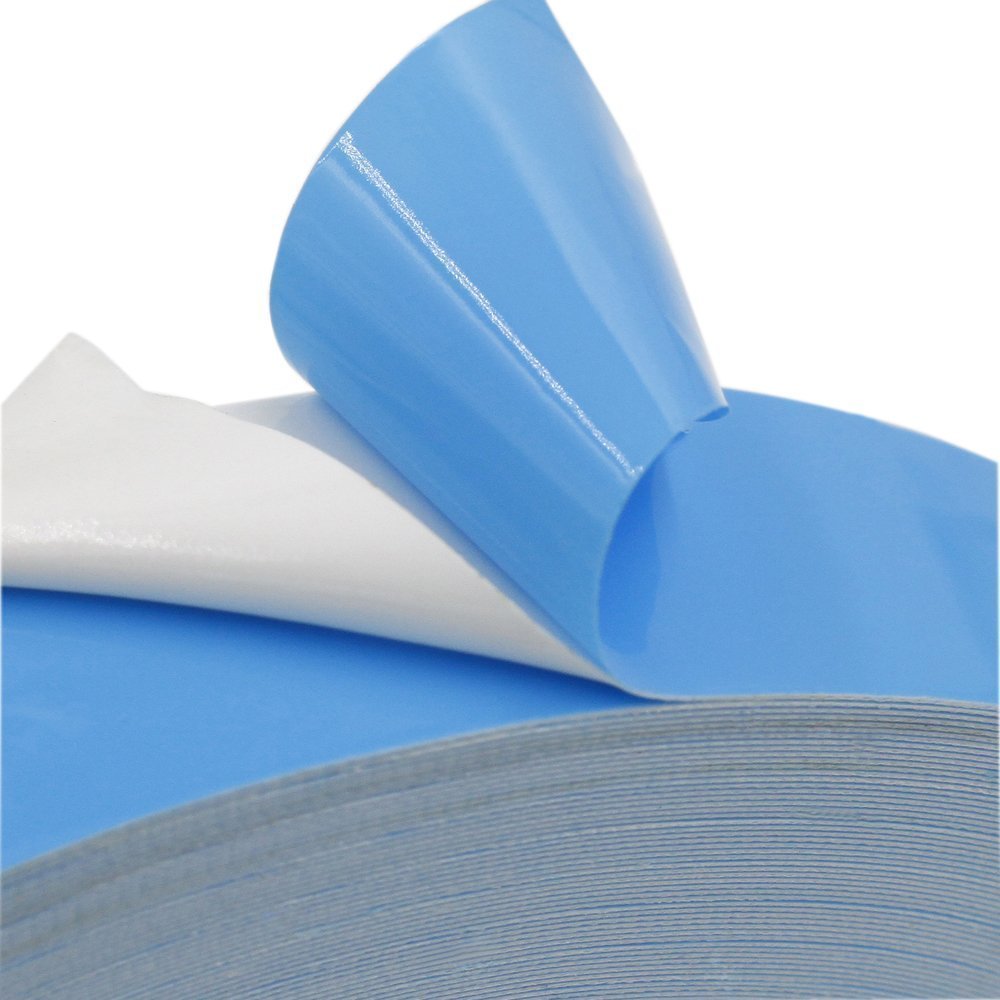

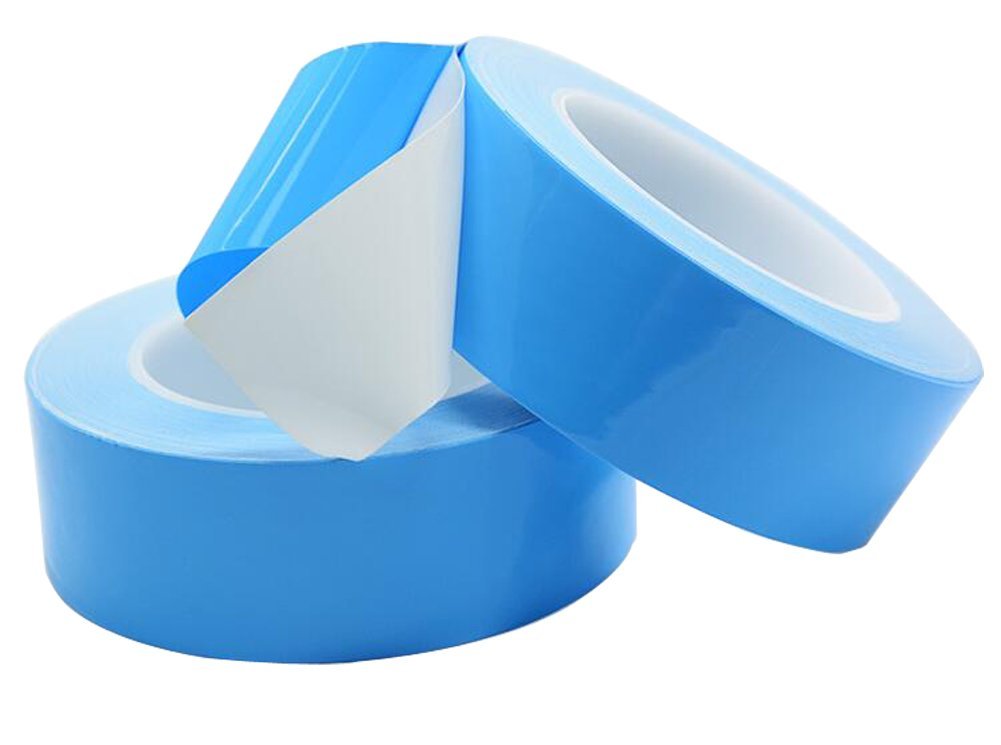

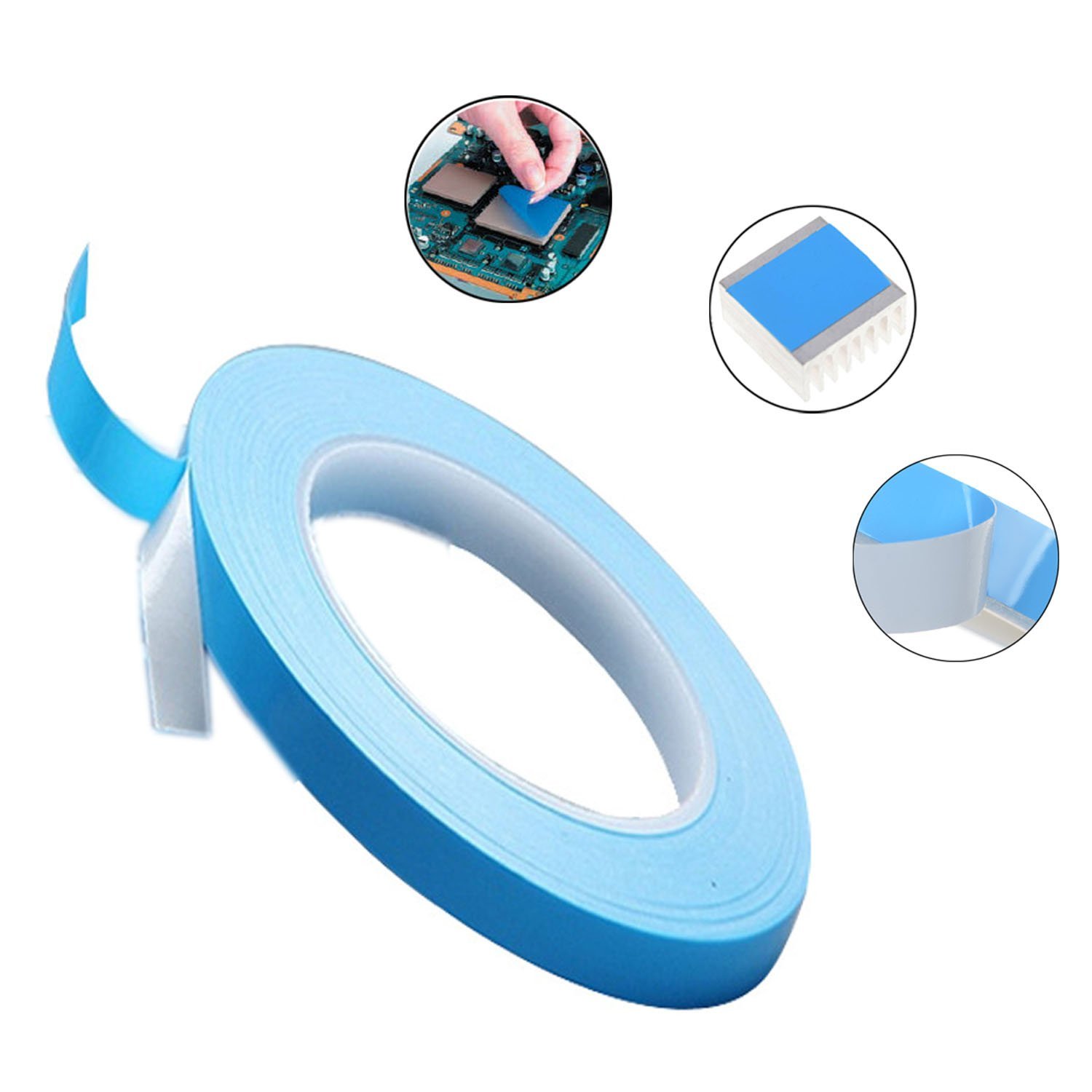

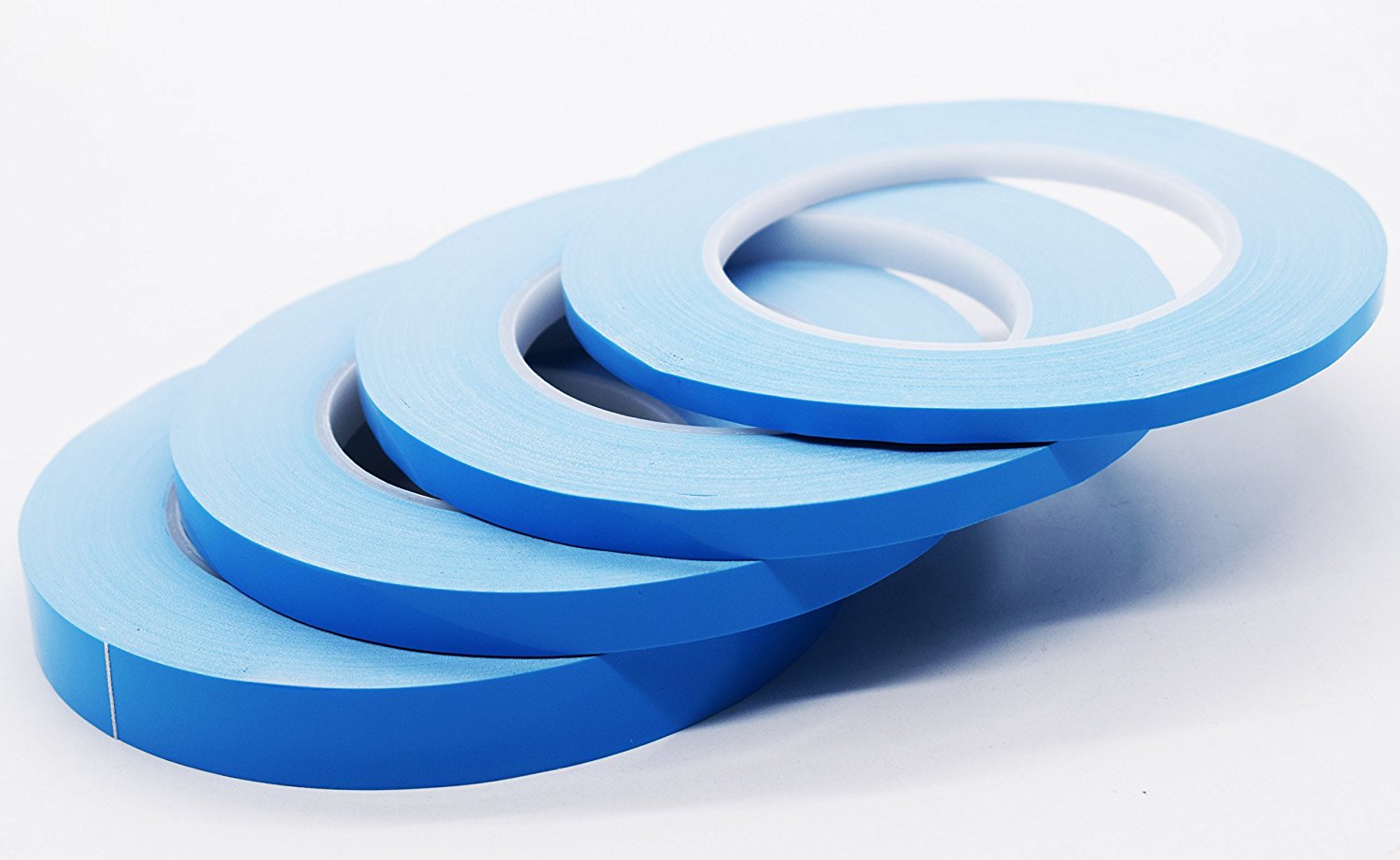

Fiberglass Thermal Conductive Tape for Heat Sink pad of LED, LCD, CPU etc

Short Description:

Production Description Fiberglass thermal conductive tape use glass fabric cloth as substrate and double coated with  thermal conductivity pressure-sensitive adhesive. Thermal conducive tape with features of high thermal conductivity and insulation, and has flexibility, compressibility, docility, strong adhesion. Adapt to temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices and heat sink, the heat quickly transmitted. Jumbo Roll Size: 1030mm*25...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Production Description

    Fiberglass thermal conductive tape use glass fabric cloth as substrate and double coated with  thermal conductivity pressure-sensitive adhesive. Thermal conducive tape with features of high thermal conductivity and insulation, and has flexibility, compressibility, docility, strong adhesion. Adapt to temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices and heat sink, the heat quickly transmitted.

    Jumbo Roll Size: 1030mm*25/50m. (Can be Customized)

    Construction

    Thermal conductive PSA
    Glass fabric
    Thermal conductive PSA
    Release paper/film

    Datasheet

    Item No. Thickness(mm) 180°Peel Strength(PSTC-101)(N/25mm) Insulation Strength(ASTM D149)(KV) Thermal Impedance@40PSI(AMD2240)

    (C*in2/W)

    Thermal Conductivity(ASTM D22470)(W/m-k) Temperature Range
    AHS-8110 0.10±10% >13.72 2.22 0.626  1.20 -20℃~+120℃
    AHS-8115 0.15±10% >13.72 2.55 0.715
    AHS-8120 0.20±10% >13.72  4.29 1.125
    AHS-8125 0.25±10% >13.72  5.0 1.196
    AHS-8130 0.30±10% >13.72  5.0 1.445
    AHS-8150 0.50±10% >13.72  5.0 2.098

    Features

    • Good thermal conductivity
    • Glass fiber high temperature tape
    • Flexibility, adaptability and excellent bonding strength
    • Broad operating temperature range
    • Various sizes available
    • Heat sink thermal tape
    • Stable performance, low cost
    • Radiator heat tape

    Application

    1. Maily appy on CPU, LED, PPR heat sink, microprocessor.
    2. Power consumption semiconductor.
    3. Replacing screws,fasteners and other fixed means.
    4. Fixing heat sink on the power supply circuit board , vehicle contarol circuilt board and package chips.
    5. Electronic appliances, LED lighting, hardware industry, printing industry and other manufacturing industries.
