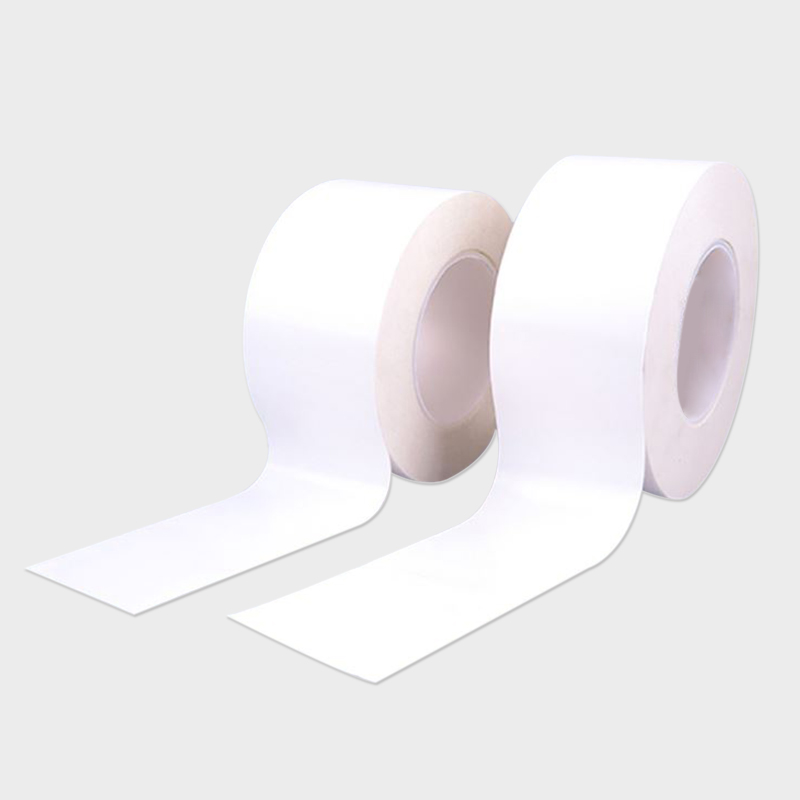

Double Side Heat Transfer Tape for electronics LED lighting printing industry

Short Description:

Product Description Double Side Heat Transfer Tape is made of acrylic polymer filled with thermal conductive ceramic powder, and silicone adhesive composite. Has a high thermal conductivity and insulation properties, and has flexibility, compressibility, docility, strong adhesion. Adapt to temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices and heat sink, the heat quickly transmitted. Jumbo Roll Size: 1030mm*25/50m. (Can be Customized) In toda...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    Double Side Heat Transfer Tape is made of acrylic polymer filled with thermal conductive ceramic powder, and silicone adhesive composite. Has a high thermal conductivity and insulation properties, and has flexibility, compressibility, docility, strong adhesion. Adapt to temperature range, can fill the uneven surface, can be closely and firmly fit the heat source devices and heat sink, the heat quickly transmitted.

    Jumbo Roll Size: 1030mm*25/50m. (Can be Customized)

    In today’s high-tech research and development production today, thermal materials industry is also germination, thermal double-sided tape plays a big core role. Because the general thermal conductivity of the material is difficult to play an important part of both electronic conduction and good adhesion. The role of double-sided heat transfer tape completely solve this problem; especially in the electronics, LED lighting industry and LED TV has played a significant role in the field.

    Construction

    Thermal conductive acrylic PSA
    Release paper

    Datasheet

    Item No. Thickness

    (mm)

    180°Peel Strength

    (PSTC-101

    )(N/25mm)

    Insulation Strength

    (ASTM D149)

    (KV)

    Thermal Impedance

    @40PSI

    (AMD2240)

    (C*in2/W)

    Thermal Conductivity

    (ASTM D22470)

    (W/m-k)

    Temperature Range
    AHS-A8105 0.05±10% 10.78 1.57 0.414 1.20 -20℃+120℃
    AHS-A8110 0.10±10% 13.72 2.22 0.558
    AHS-A8115 0.15±10% 13.72 2.55 0.654
    AHS-A8120 0.20±10% 15.68 4.29 1.070
    AHS-A8125 0.25±10% 15.68 5.0 1.173
    AHS-A8130 0.30±10% 15.68 5.0 1.234
    AHS-A8140 0.40±10% 15.68 5.0 1.525

    Features

    High thermal conductivity and stability, and its life-span than the general cooling double-sided stickers long, normal temperature (80-120 degrees) can work for a minimum of 5 years.

    Application

    Electronic appliances, LED lighting, hardware industry, printing industry and other manufacturing industries.

    Thermal double-sided adhesive affixed to the field of IC heat sink is the most effective way, specializing in the bonding of heat sink and chip double-sided affixed, LED use more convenient, between the LED and the thermal aluminum affixed thermal double-sided adhesive , With a little force can be; thermal conductivity than the average effect of thermal plastic significantly. This product can also be used for other devices that require thermal bonding, instead of using screws to achieve the most effective cooling.
    The general use of other heat sink and heat bonding equipment are very easy to use, the thermal double-sided paste placed between the heat sink and the heat sink, plus compression, the heat sink is firmly fixed on the heat sink, the use of simple and convenient, Help to improve production efficiency. Its cooling effect than the general effect of thermal stickers significantly improve the life of the components, some of the high-end and thermal conductivity of electronic products of choice.
