Heat Resistant Aluminum Foil Tape with Nonconductive Adhesive for EMI Shielding

Short Description:

Product Description Aluminum foil tape, using high-quality pressure-sensitive adhesive with good viscosity, strong adhesion, anti-aging effect! Purity higher than 99.95%, its function is to eliminate electromagnetic (EMI) interference, isolate electromagnetic waves from the human body and avoid unnecessary voltage and current to affect the function. In addition, the electrostatic discharge after grounding has a good effect. As material of the polyester fiber, It is not prone to cracking and d...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

    Aluminum foil tape, using high-quality pressure-sensitive adhesive with good viscosity, strong adhesion, anti-aging effect!

    Purity higher than 99.95%, its function is to eliminate electromagnetic (EMI) interference, isolate electromagnetic waves from the human body and avoid unnecessary voltage and current to affect the function. In addition, the electrostatic discharge after grounding has a good effect. As material of the polyester fiber, It is not prone to cracking and damage in repeated use or after bending, with the features of strong paste, good electrical conductivity. It can be easily wrapped around the wire winding and cut into a variety of specifications according to customer requirements.

    Jumbo roll size 1200mm×50m.(Can be Customized)

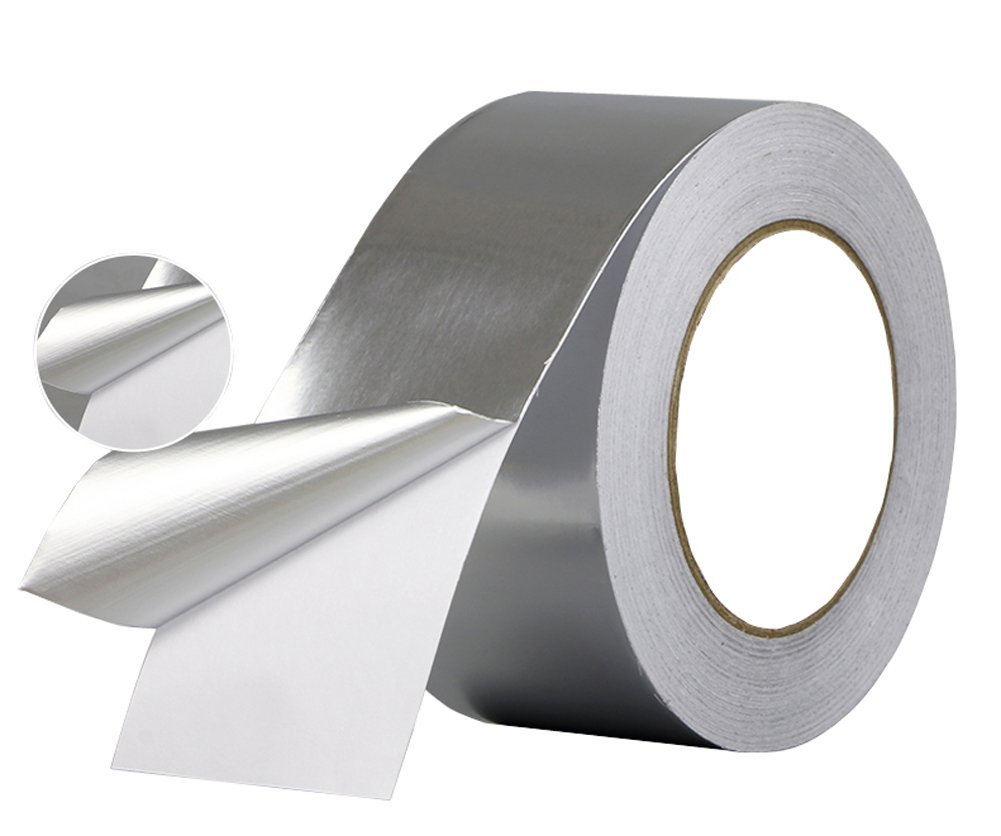

    Structure

    Aluminum Foil
    Non Conductive Acrylic Adhesive
    Release Paper

    Data Sheet

    Color Silver
    Carrier Aluminum Foil
    Adhesive Non Conductive Acrylic Adhesive
    Carrier Thickness(mm) 0.025
    Total Thickness(mm) 0.065±0.005
    Appearance Excellent,no oxidation
    Initial Tack(kg/1’’) 1
    Holding Power(1kg/h) 48
    Adhesion to Steel(kg/1’’) 0.8
    Application Temperature -10~120℃
    Storage Condition 25℃,65%RH
    Specification
    Length(m) 50/100
    Width(mm) 2~1200(custom slit)

    Features

    1. Excellent reflection of both heat and light
    2. High quality adhesive with super strong adhesion and holding power
    3. Low moisture vapor transmission rate

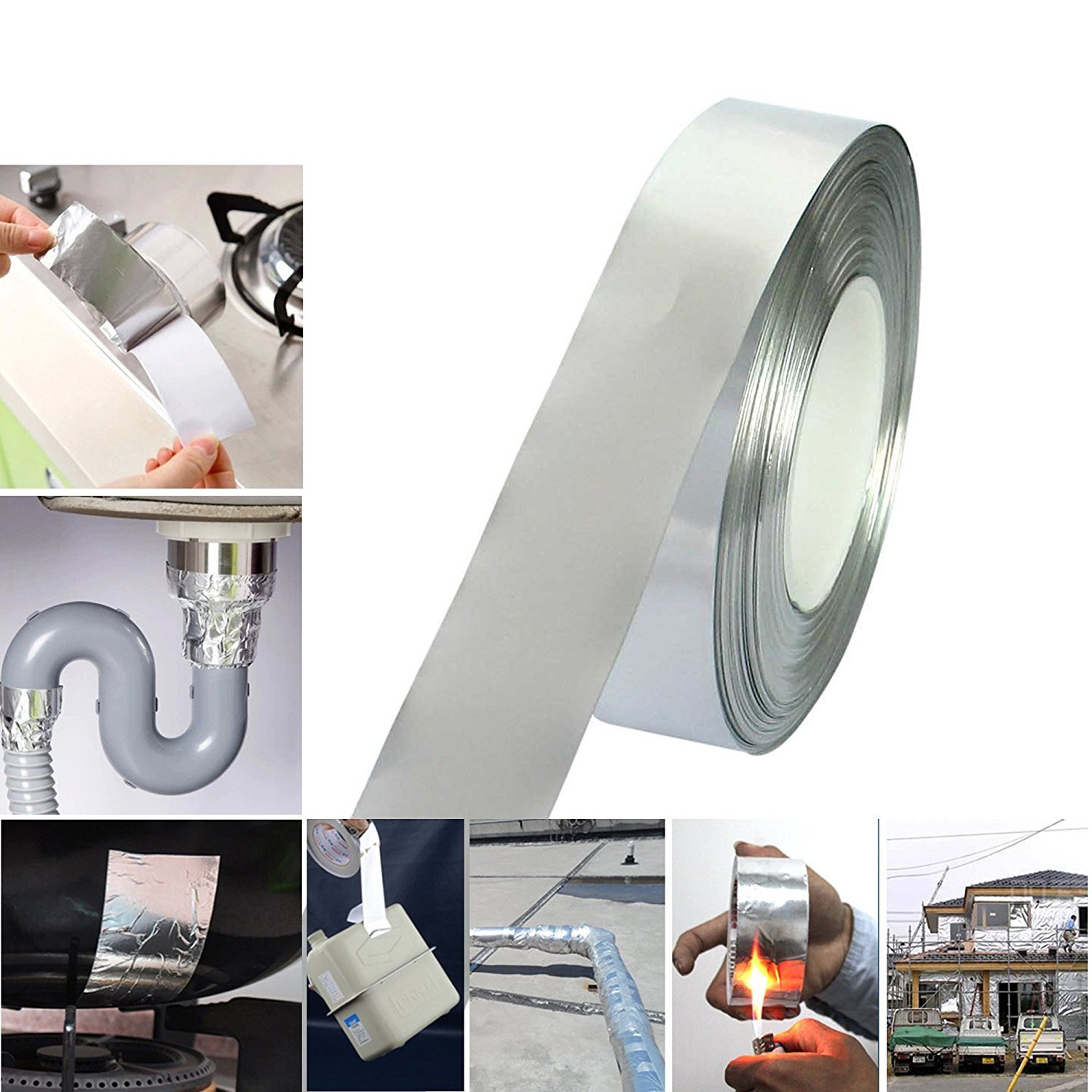

    Application

    1. Aluminum foil tape suitable for all types of transformers, cell phones, computers, PDAs, PDPs, LED displays, notebook computers, photocopiers and other electronic products within the electromagnetic shielding.
    2. Used for steam catheter package, to prevent the loss of temperature out.
    3. Aluminum foil tape purposes: instead of enameled wire, all kinds of voltage-dependent shielding.
