ITW FORMEX GL & ITW FORMEX,ITW FORMEX GK, ITW FORMEX GS (FORMERLY STATEX), ITW FORMEX N3

Short Description:

ITW FORMEX GL & ITW FORMEX,ITW FORMEX GK, ITW FORMEX GS (FORMERLY STATEX), ITW FORMEX N3 Formex is a brand-name line of electrical insulating materials. This flame-retardant electrical insulation is a versatile and cost-effective method for a wide variety of applications. We offer Formex sheets and rolls. A member of the ITW Formex® product line, Formex shields against electric surges in industrial and consumer electronic equipment. Usage of Formex Formex is composed of flame-retardant po...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    ITW FORMEX GL & ITW FORMEX,ITW FORMEX GK, ITW FORMEX GS (FORMERLY STATEX), ITW FORMEX N3
    Formex is a brand-name line of electrical insulating materials. This flame-retardant electrical insulation is a versatile and cost-effective method for a wide variety of applications. We offer Formex sheets and rolls. A member of the ITW Formex® product line, Formex shields against electric surges in industrial and consumer electronic equipment.

    Usage of Formex
    Formex is composed of flame-retardant polypropylene that prevents electrically charged components from arcing, protecting the users, equipment, and maintenance personnel. In the event of electrical fire, The Flame retardant properties assure that it the material will not melt or combust up to 115°C / 239°F. It appears in a variety of applications as an electrical insulator and barrier.

    Applications:
    Cloud data centers
    Industrial controls
    LED lighting
    Electrical power distribution
    Consumer electronics
    Major appliances
    Medical electronics
    Information technology
    Telecommunications



    APPLICATIONS ELECTRICAL AND ELECTRONIC INSULATION

    Formex provides insulation for:

    EV battery packs
    EV onboard chargers
    EV DC/DC converters
    EV power electronics controllers
    EV DC charging stations
    PV solar power inverters
    LED drivers
    EV battery management systems
    Panelboard barriers and insulators
    Industrial power terminal insulation

    Formex also appears in a variety of electronics and smart home devices such as:

    Power supplies
    AI speakers
    Home appliances
    Personal computers

    Furthermore, Formex can be found in:

    Patient treatment
    Monitoring
    Testing
    Automated drug dispensing
    Pulse detection
    Blood pressure sensing
    Electrocardiogram instrumentation
    BARRIERS
    Formex barriers exist between PC boards and housings to prevent access to dangerous areas within the equipment.



    TYPES OF FORMEX AT Aerchs MANUFACTURING
    At Aerchs Manufacturing, we provide the following Formex products:

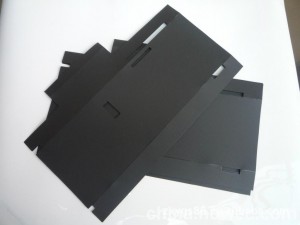

    Formex GK
    Available in 0.005–0.094-inch thickness
    Offers superior dielectric strength
    115°C/239°F continuous-use temperatures
    Formex GS (formerly Statex)
    0.010–0.031-inch thickness
    Static dissipative electrostatic discharge (ESD) protection
    110°C/239°F continuous-use temperatures

    Formex GL
    24-inch-wide Formex sheet rolls at 1,000 or 2,000 linear feet
    Available in 0.010” and 0.017” thickness
    125°C/257°F continuous use temperatures
    Formex N3
    24-inch-wide Formex sheet rolls at 1,750 or 2,000 linear feet
    Halogen free polycarbonate
    UL 94V-0 Flame Class Rating
    Available in 0.008” and 0.010” thickness
    FEATURES
    Formex offers a range of desirable features for users, including:

    UL 94V-0 Flame Class Rating meets global standards for safety
    Non-hygroscopic (ultra-low <0.06% moisture absorption)
    Excellent dielectric strength shields against electrical surges
    Chemical resistance maintains mechanical and electrical properties
    Superior scoring, folding, and bending capabilities—parts do not split or crack
    Competitive pricing
    Formex processing occurs using a variety of methods, including:

    Die cutting for engraved, rotary, steel rule, and male/female dies
    Laser/water jet cutting for rapid prototyping and high-speed production
    Heat forming to produce permanently formed angles on parts with low-cost tooling
    Machining using conventional techniques for easy fabrication
    Thermoforming to produce rigid, three-dimensional complex shapes



    Additional processing available for Formex includes:

    Lamination with copper or aluminum foil for EMI and RFI shielding
    Addition of adhesives for various applications
    Marking to add embossed or printed product ID or part numbers as well as safety or technical information
    Welding to bond Formex to itself with conventional techniques
    Joinery methods to create parts and eliminate external fastening
    INSULATION FOR ALL OCCASIONS

    Formex materials have a wide variety of uses in a number of electrical insulation applications, from manufacturing to consumer products. This flame-retardant material prevents electric surges by shielding electrical parts, preventing arcing, burning or fire.

    Aerchs Manufacturing offers a great selection of electrical insulation materials like Formex for your applications. We will be happy to help you select the right electrical insulators and barriers for your application’s needs. Browse our catalog to find a full list of Formex materials and applications, or contact us for more info!
