High Temperature green PET Tape Made with Polyester and Silicone for Powder Coating and Masking

Short Description:

Product Description Green PET Tape is composed of polyester (PET) film and silicone adhesive.Itis a kind of adhesive tape used in the bonding of printed circuit board and film, not only meets the needs of PCB manufacturers when plating gold fingers, even if it is used in all kinds of films , Synthetic film, paper bonding, but also to meet the needs of users. Suitable for PCB electroplating gold protection; all kinds of film, synthetic leather, paper bonding; good heat resistance; no debonding...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

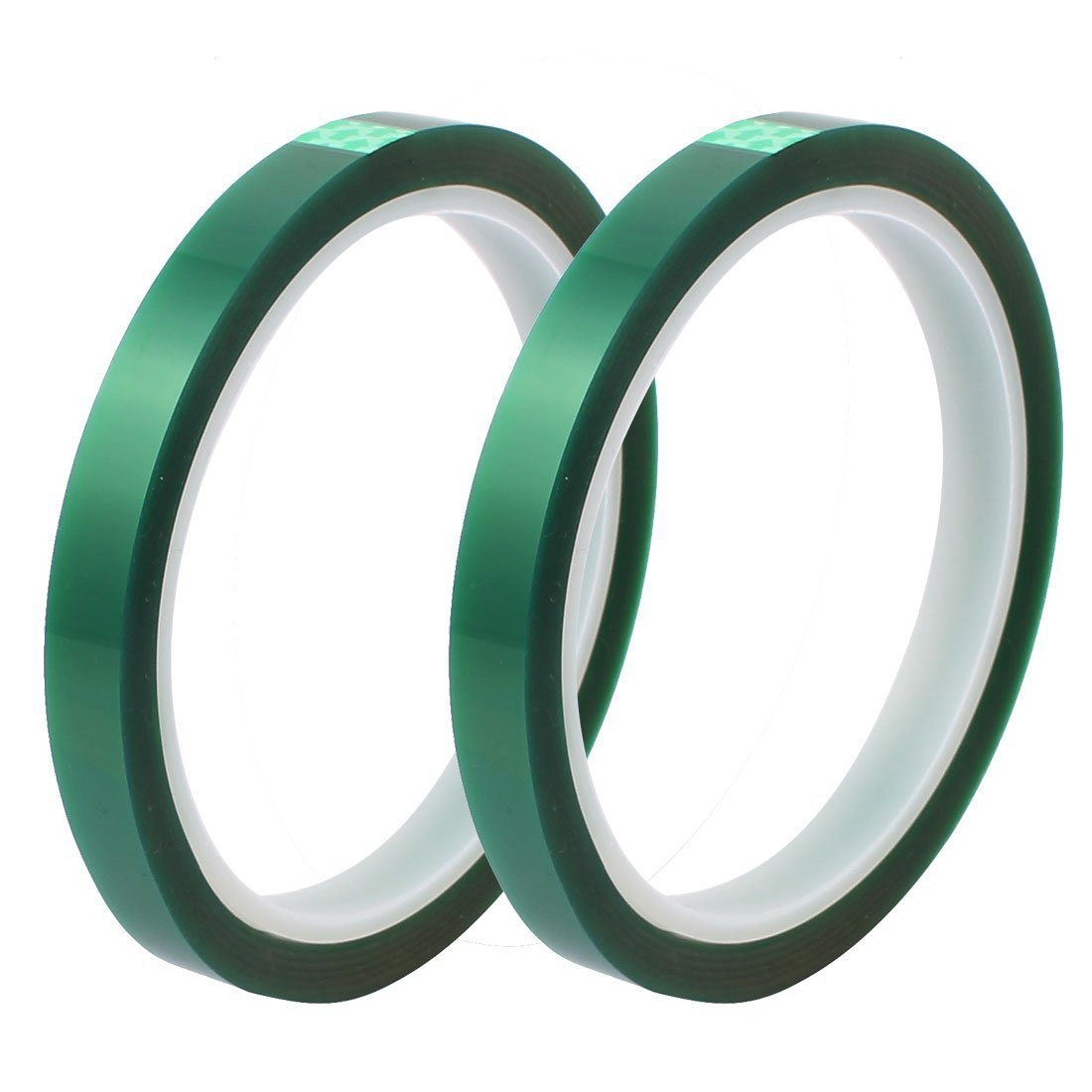

    Green PET Tape is composed of polyester (PET) film and silicone adhesive.Itis a kind of adhesive tape used in the bonding of printed circuit board and film, not only meets the needs of PCB manufacturers when plating gold fingers, even if it is used in all kinds of films , Synthetic film, paper bonding, but also to meet the needs of users. Suitable for PCB electroplating gold protection; all kinds of film, synthetic leather, paper bonding; good heat resistance; no debonding; different storage environment can tear evenly.

    The smooth PET film coated with good adhesion of silicone, with high temperature resistance (resistant to 180 ℃), insulation. Suitable for powder coating masking and LED digital tube potting

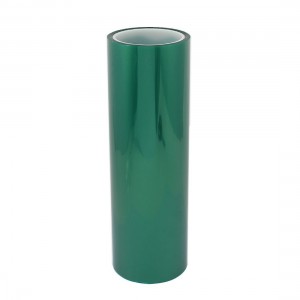

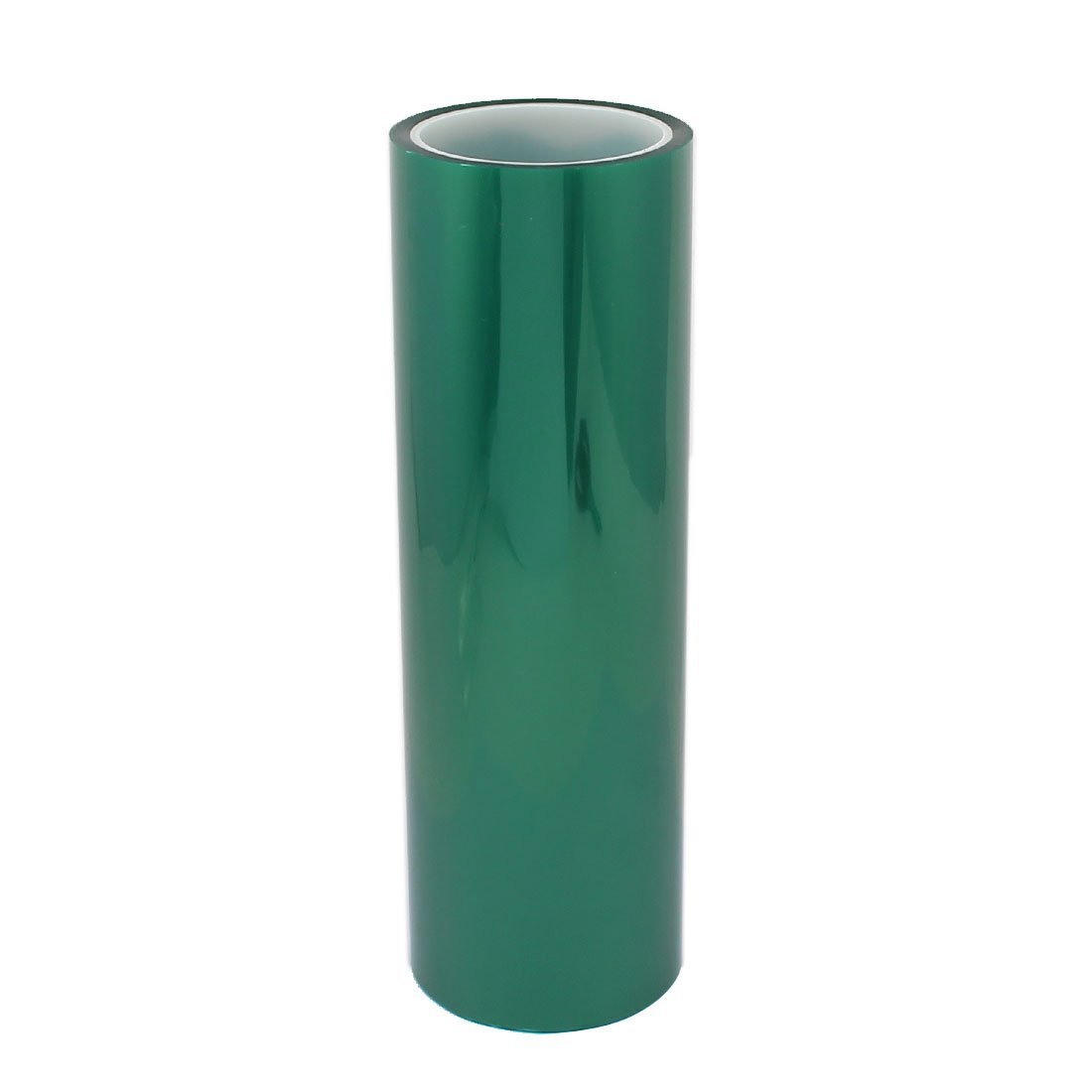

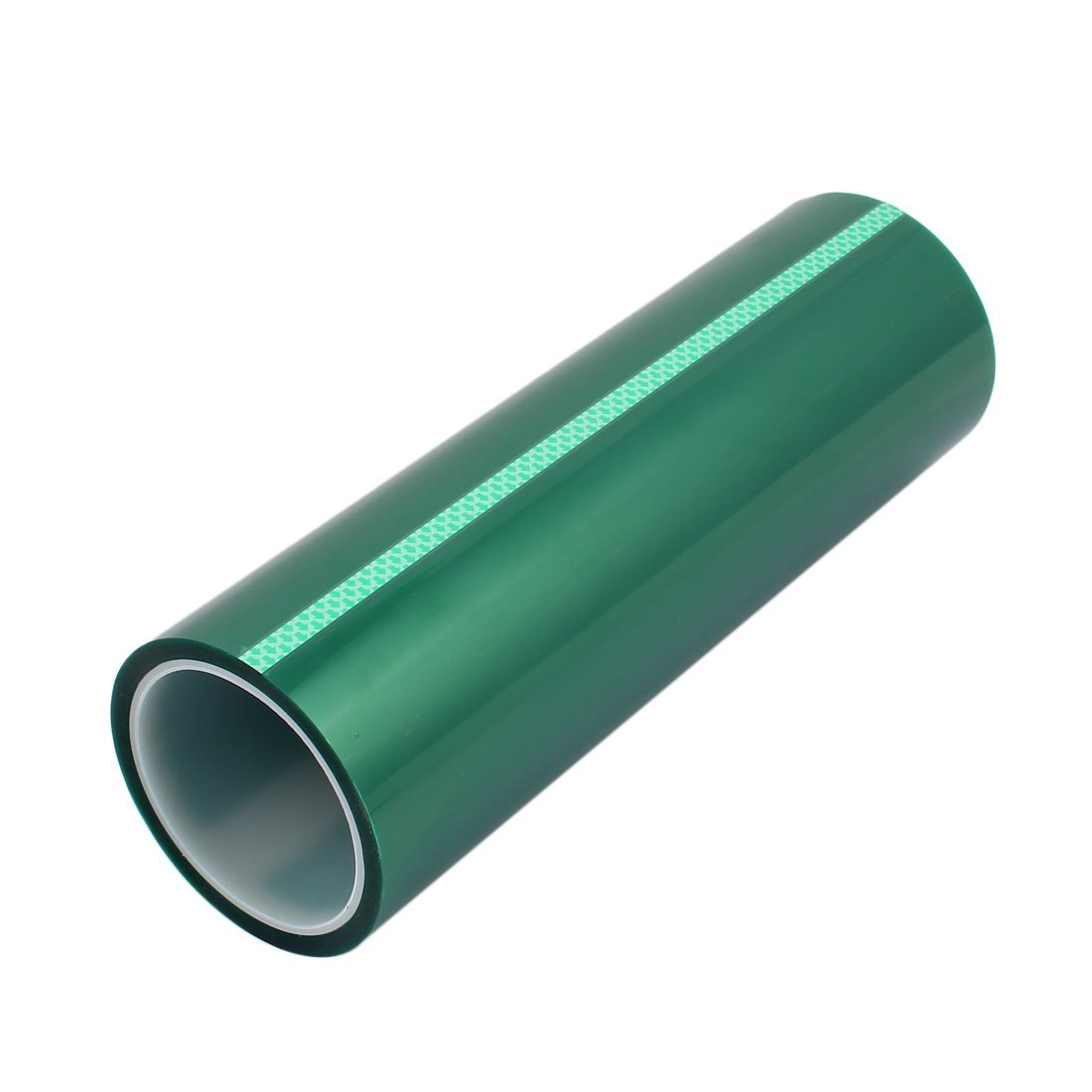

    Jumbo Roll size: 980mm*33m/66m  can be customized.

    Structure

     Silicone adhesive
     Polyester (PET) film

    Features

    • Strong adhesion
    • Flexibility, consistency
    • High temperature
    • Various thickness options
    • Peel off without residue

    Application

    • Anodizing
    • Electronic assembly
    • Universal masking
    • Masking electronic components
    • Powder coating
    • plating
    • Photo stitching
    • Shipping and packaging

    Data Sheet

    Item ARS-3565SIG ARS-5080SIG ARS-2560SIG ARS-2590SIG
    Color Clear/Green/Blue Clear/Green/Blue Clear/Green/Blue Red/Yellow
    Carrier Polyester Polyester Polyester Polyester
    Adhesive Silicone Silicone Silicone Silicone
    Carrier Thickness(mm) 0.035 0.05 0.025 0.025
    Adhesive Thickness

    (mm)

    0.025 0.03 0.035 0.065
    Total Thickness(mm) 0.06 0.08 0.060 0.09
    Adhesion(N/25mm) 6 6 6 8
    Tensile Strength

    (N/25mm)

    135 220 115 135
    Elongation at Break(%) 40 50 35 35
    Corrosion Resistance 1 1 1 1
    Storage Condition 20℃,65RH 20℃,65RH 20℃,65RH 20℃,65RH
    Long Term Heat

    Resistance(℃)

    180 180 180 180
    Short Term Heat

    Resistance(℃)

    220 220 220 220
    RoHS Complied
    Width 2~980mm
    Length 33m/66m
