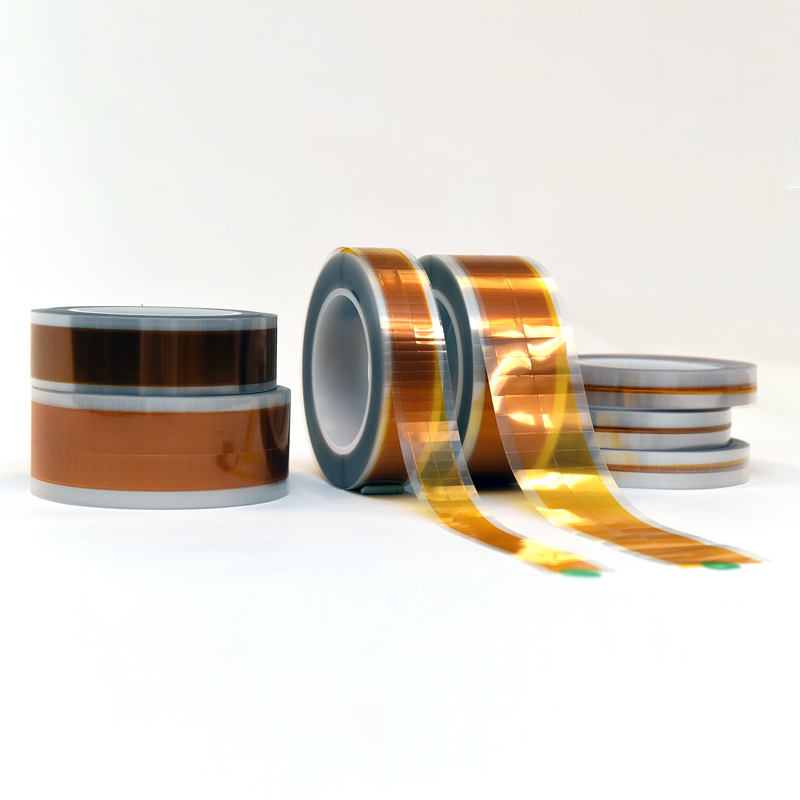

Kapton Polyimide Fep Film for Wire and Cable Insulation

Short Description:

Description Aerchs Polyimide FEP film is Polyimide film coated with FEP resin on one side or double sides through the sintering process at high temperature, which combines the excellent properties of Polyimide film and FEP resin, high& low temp resistant, radiation resistant, excellent electrical properties, superior dimensional stability and heat sealable properties. Features High temperature electrical insulation Cut-through resistant High dielectric strength High bond strength Datash...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Description

    Aerchs Polyimide FEP film is Polyimide film coated with FEP resin on one side or double sides through the sintering process at high temperature, which combines the excellent properties of Polyimide film and FEP resin, high& low temp resistant, radiation resistant, excellent electrical properties, superior dimensional stability and heat sealable properties.

    Features

    • High temperature electrical insulation
    • Cut-through resistant
    • High dielectric strength
    • High bond strength

    Datasheet

    Items

    Unit

    AHSPIFEP  616

    AHSPIFEP  616B

    AHSPIFEP  919

    AHSPIFEP   019

    AHSPIFEP    011

    AHSPIFEP 021

    Thickness

    Um(mil)

    31(1.2)

    33(1.3)

    50(2.0)

    38(1.5)

    50(2)

    75(3.0)

    Structure FEP

    um

    3.0

    4.0

    12.5

    12.5

    25.0

    25

     PI

    25.0

    25.0

    25.0

    25.0

    25.0

    50

    FEP

    3.0

    4.0

    12.5

    0

    0

    0

    Thickness Tolerance

    %

    +/-10

    Tensile Strength≥ MD

    MPa

    130

    130

    100

    140

    100

    110

    TD

    110

    110

    80

    110

    80

    90

    Elongation at rupture≥

    %

    50

    50

    50

    50

    60

    60

    Breakdown Strength ≥ Average

    MV/m

    150

    150

    120

    150

    120

    110

    Individual

    120

    120

    110

    120

    100

    100

    Peel Strength≥ F-F N/25mm

    6.0

    6.0

    6.5

    N/A

    N/A

    N/A

    F-H

    N/A

    N/A

    N/A

    6.0

    6.0

    6.0

    *Surface Resistivity  200+/-5c(392F)  ≥

    Ω

    1.0×1013

    *Volume Resistivity  200+/-5c(392F)  ≥

    Ω·m

    1.0×1010

    *Dielectric constant (50Hz)

    3.5±0.4

    * Loss tangent (50Hz)  ≤

    4.0×10-3

    Note: Above values are the accumulative typical ones by recognized testing method, but, in order to ensure you to select our products properly, please refer to above specification and test the samples based on your using purpose or feel free to contact us for more details.

    Application

    • Wire and cable insulation for downhole pumps and aircraft electrical systems.
    • Turn insulation in Motors and Generators.
    • Electrical insulation of Flexible Heater.

    Packaging

    • Width: 6.0~660mm
    • Roll OD: 200~250mm  Pad roll, Transverse roll(universal roll)
    • Core ID:76mm(3″) or 152mm(6″ ), Core materials: Paper or plastic;
    • Packaging: Carton and Pallet.
    • custom sizes are available upon request.
