PET Green Polyester Masking Dots(Discs)with Wishbone Handle for Powder Coating, Plating and Anodizing

Short Description:

Product Description Green Masking Discs, also known as Powder Coating Masking Discs, are made of polyester film with silicone adhesive,and easy to peel off with wishbone handle design. Green Masking Discs can withstand temperatures of up to 400°F/204°C. They are widely used in powder coating, plating and anodizing to mask areas that do not require coating or plating.They are extremely economical and can be removed cleanly without leaving any adhesive residue. Structures Release Film Sili...


  • Die Cutting: Available
  • Customized Solution: Available
  • Factory Inspection: Available
  • Samples Delivery day: 3 days by air express
  • Certification: SGS, ROSH, ISO
  • Product Detail

    Product Tags

    Product Description

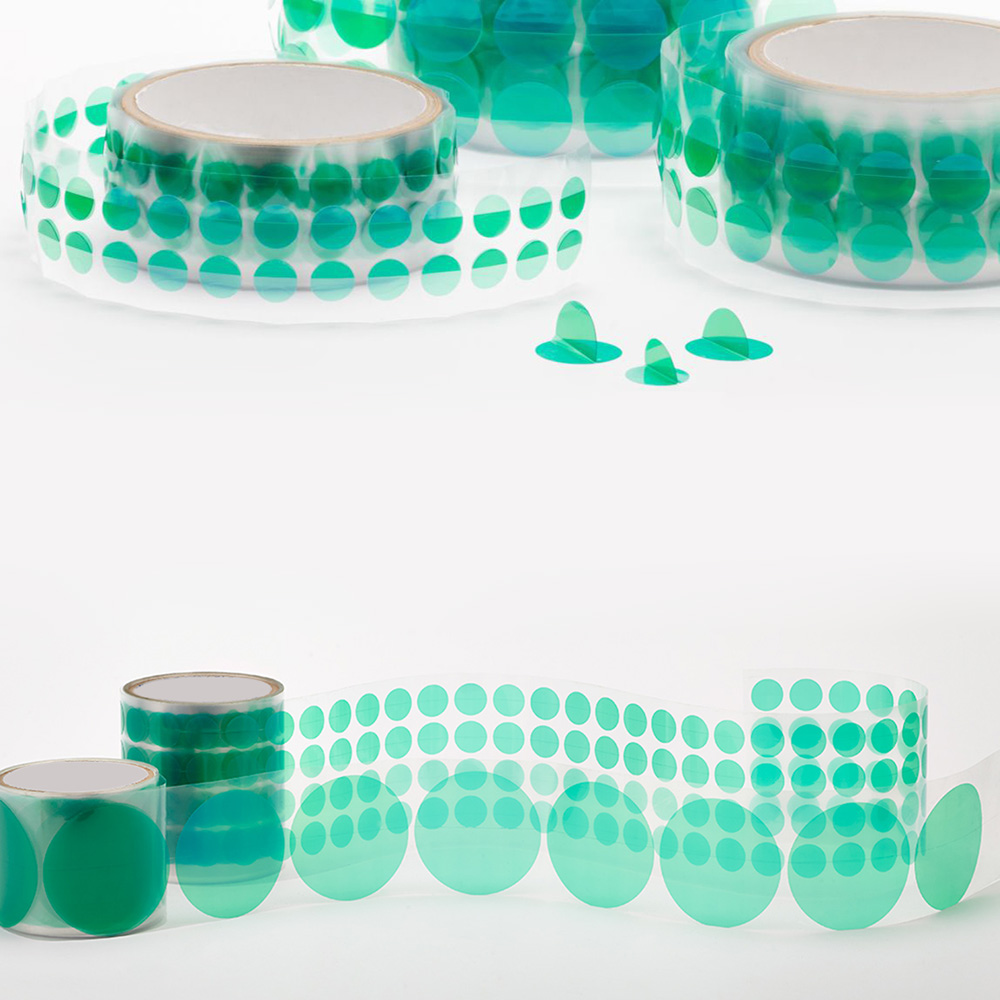

    Green Masking Discs, also known as Powder Coating Masking Discs, are made of polyester film with silicone adhesive,and easy to peel off with wishbone handle design.

    Green Masking Discs can withstand temperatures of up to 400°F/204°C. They are widely used in powder coating, plating and anodizing to mask areas that do not require coating or plating.They are extremely economical and can be removed cleanly without leaving any adhesive residue.

    Structures

    Release Film
    Silicone Adhesive
    PET Polyester Film

    Data Sheet

    Carrier  PET/Polyester
    Adhesive Silicone
    Color Green/Red/Clean/Blue
    Thickness 0.06mm/0.08mm/Customizable
    Length 33m/66m
    Width Customizable
    Adhesion 6 N/25mm
    Tensile Strength 135 N/25mm
    Elongation at Break 40%
    Temperature Resistance 400°F/204°C

    Features

    • Easy to peel off with wishbone handle.
    • Resistant to abrasion, chemicals and temperature.
    • Wide operating temperature range up to 400°F/204°C.
    • Excellent electrical insulation.
    • Removes without adhesive residue after exposure to heat /chemical.

    Applications

    • Masking parts for powder coating, Plating and Anodizing.
    • Masking edges of overlap seams in metal bonding process.
    • Holding parts or vacuum bags during bonding process.
    • Photo Splicing.
    • Soldering.
